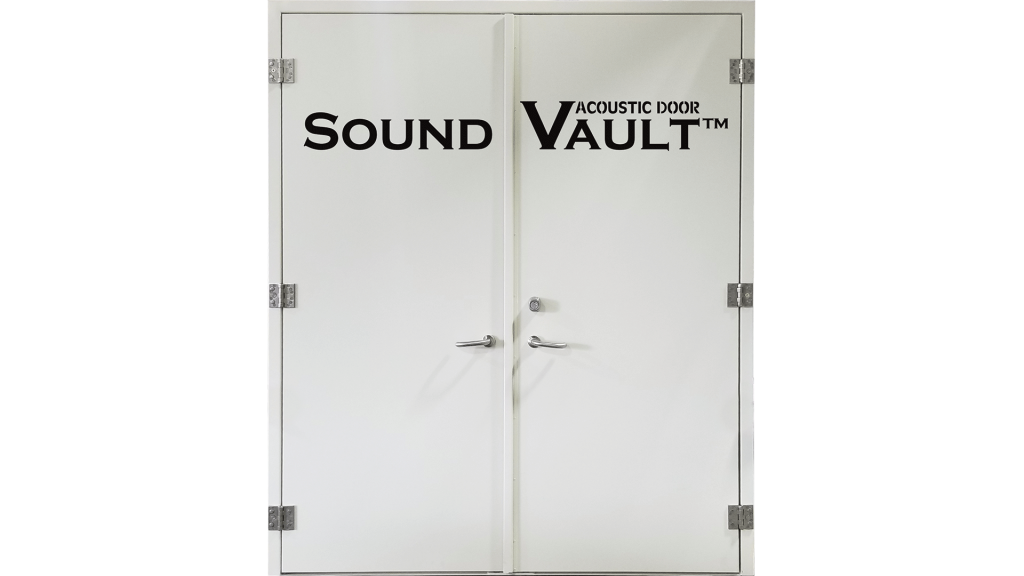

SoundVault™ Doorsets
When you want state-of-the-art noise reduction for your business, commercial or laboratory environment, Eckel SoundVault™ Acoustic Doorsets provide unparalleled performance. Featuring advanced SoundVault™ technology, these acoustic doorsets are the trusted choice of leading engineers, architects and designers.
- Machinery containment areas
- Offices and Control rooms
- Plant-floor testing or Research laboratories
- Water pumping stations
- Electrical transformers
- Mechanical equipment
- Transportation corridors
- Restaurants, Nightclubs and Theatres
- Hospitals, Schools, Hotels and Museums
Why you need SoundVault™
Architectural design and outstanding performance
- SoundVault™ DoorSets are designed for architectural, industrial and security applications
- SoundVault™ DoorSets are designed to meet stringent performance specifications
Better acoustic environment
- Quieter workplace
- Reduced Noise between indoors and outdoors
- Complete isolation
- Enhanced productivity
- Numerous benefits result
Where to apply SoundVault™
Ideal for use virtually anywhere :
- Any room, area, or factory floor
- Music studios
- Music practice rooms
- Broadcasting studios
- Offices and Control rooms
- Restaurants, Nightclubs and Theatres
- Hospitals, Schools, Hotels and Museums
- Transportation corridors
- Anywhere sound is generated by machinery and equipment needs to be controlled
Pre-engineered, structurally strengthened doors combine outstanding sound control properties with unusual versatility in application
Strengths
Advantages of Using SoundVault™
Unique Flexibility
SoundVault™ Doorsets provide customization options up to 5” thickness. Sound-rated door panels and accessories allow a degree of construction freedom not found in conventional acoustic door systems. ADA compliant options are also available.
Excellent Acoustic Control
With the SoundVault™ system, both transmission loss and sound absorption are optimized.
Pre-Assembled and Aligned
SoundVault™ Doorsets can be fully factory assembled complete with hardwares for alignment and fit.
A Broad Spectrum of Applications
The versatility of SoundVault™’s industrial noise control applications is unmatched.
Easy to Install
Installation of SoundVault™ Doorsets is quick with minimal equipment.
Complete Range of Components to Satisfy Any Noise Isolation Need
The SoundVault™ Doorsets, offered in a broad selection of widths and heights, include various types of performance with many custom options.
Each SoundVault™ Door is custom tailored to your project’s needs.
SoundVault™ Performance
All acoustic performances and fire ratings of SoundVault™ Doors are independently tested and verified.
Details
May vary depending on the order
Acoustic Rating
Featuring acoustic ratings up to STC-57, these advanced steel doors are engineered to stringent specifications for laboratory-certified performance.
ADA Compliance
SoundVault™ Acoustic Doorsets feature ADA compliance.
Window Construction
SoundVault™ Doors can be manufactured with an optional window in door for viewing access.
Double-glazed window is constructed using safety glass. The cavity between the two layers of glass shall be inset with a perforated steel spacer for a better seal and to allow for a better absorption of sound. Further, this space shall contain dehydrators to prevent the occurrence of condensation between the two layers of glass.
Door Construction
Standard doors are flush mounted on heavy duty cam lift hinges. A double magnetic gasket sealing system and flush sill seal design assures the acoustic seal. Many optional clear opening doors are available.
Door Finish
It shall be electro galvanized steel prime painted with standard shop gray prime or finish painted with polyurethane enamel. Linear White, Lux White, grey, and beige are available standard colors, special colors are available upon request.
Door Connection
Hardware
Standard and Custom SoundVault™ Door Hardware
Hinges
Hinges are designed for heavy duty security, blast and ballistic doorsets, and robust to withstand a long life of heavy use
Cam-Rise Hinge
Cam-Rise Hinges move the door up when opening and then lower it to create a tight seal when the door is closed

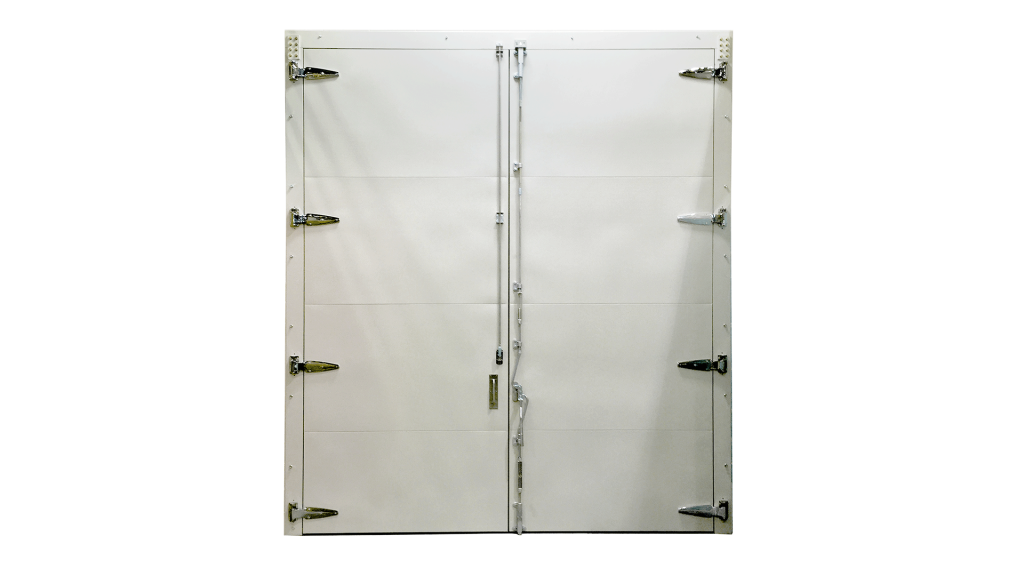

Industrial Strap Hinge
Industrial Strap Hinge is designed for heavy duty swing door applications where the door size, door weight, and frequency of operation is greater than normal
Clear Open Hinge
Eckel designed Clear Open Hinge allows a multi step sound door to swing open to its maximum clear open size dictated by the frame
Locking System
Locking systems are designed specifically for secure applications.
Single Point Locking
A high-performance, mortise, single point locking system designed specifically for secure applications. The system can be unlocked via electronic access control system or via mechanical key.
Multi Point Locking
Multi point locking can be mortise mounted inside the cavity of door This is a discrete mounting method to provide multi-point locking security while concealing the inner workings of the deviceThe system can be unlocked via electronic access control system or via mechanical key
Panic and Emergency Bar
The product is designed to provide single motion egress with a panic bar.
Optional, exterior locking trim is available.
Automatic Door Operator
SoundVault™ doorsets can be heavy, and they can be used with a special Automatic Door Operator for optimal performance.
